TRANSONS has implemented foolproof quality system to satisfy our valued customers in all aspects from RAW material inspection to FINISHED product inspection. CRCA coils are procured from branded suppliers direct from mills and the complete manufacturing procedure is monitored by fully trained and skilled inspection team.



• Savings in steel / reduction in weight of transformer tanks
• Additional reduction in oil volume because of compact design in corrugation tanks
• Savings in freight cost
• Improved heat dissipation
• Elegant appearance and hermetically sealed construction
• Vertical oil channel provides greater stability in comparison with the old system thus, making the tanks withstand a higher degree of pressure

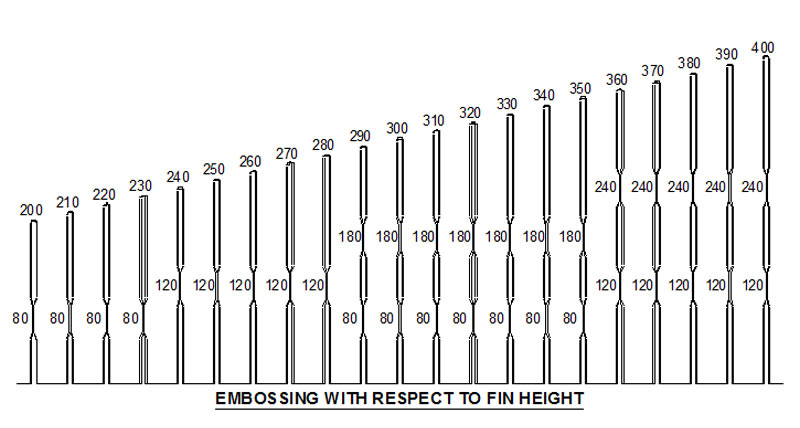

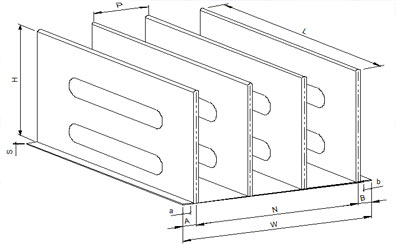

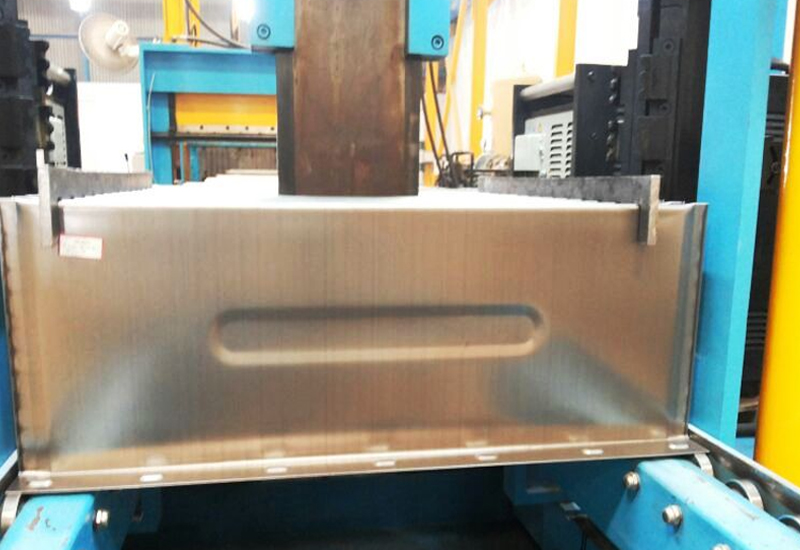

The embossing is required to increase the strength of the corrugated walls and to make more robust, especially in the big tanks, where the pressure of the oil is important, and the depth of the FIN HEIGHT (H) is above 190mm and height of the Coil (L) is above 600mm.

In order to maintain flexibility in corrugation fins to ‘breath’ (contract or expand with respect to change in temperature), spot welding is not preferred in hermetically sealed tanks.

We can supply any Profile, any Shape and Size (Product Catalogue)

Our Capacity is 2000 FINS/Day (125 Ton/Month)
